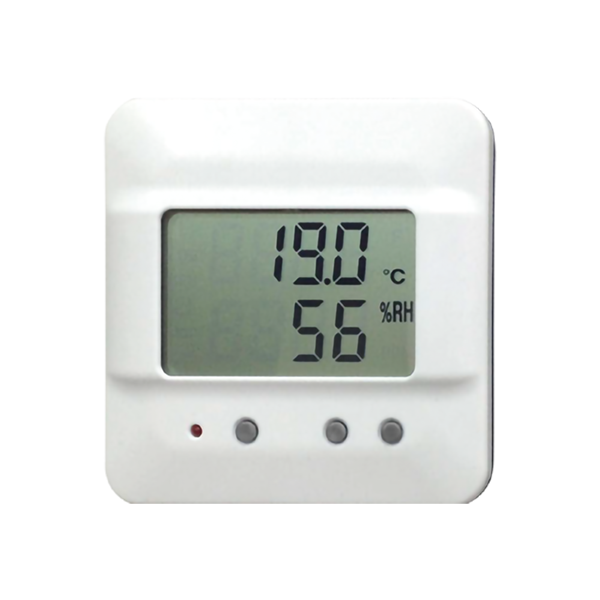

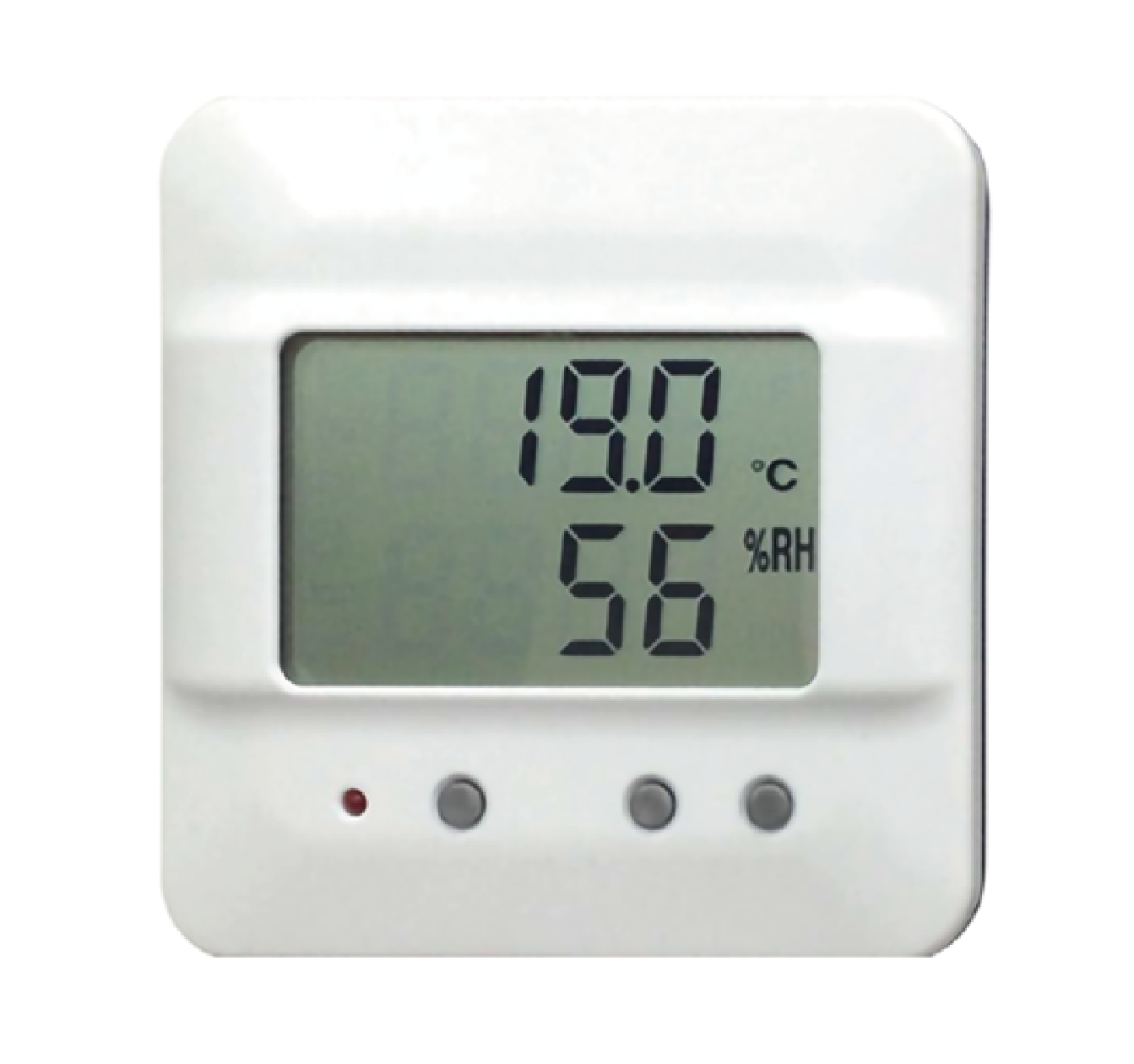

Temperature and Humidity Transmitter SYS-TH Series

This device provides temperature and humidity measurement, with a temperature range of 0—60° C or 0—50° C depending on the model, and a humidity measurement range of 0—100%RH.
Humidity accuracy is ±3%RH within the 20—80%RH range and ±5%RH outside this range, while temperature accuracy is ±0.3° C between 20—40° C and ±1° C outside this range.

The unit supports multiple output options, including 0—10V, 4—20mA, and optional RS-485 communication, and is equipped with a built-in relay output rated at 5A 30VDC / 250VAC.

Designed for high stability, it supports both wall-mounted and desktop installation, allowing for flexible and easy installation.

With a power supply range of 10—24VDC, it is suitable for applications such as HVAC systems, cleanrooms, commercial buildings, and indoor air quality (CO₂) monitoring.

The SYS-THG model additionally supports simultaneous CO₂ measurement and is compatible with HTMSYS / HTMSYS-P monitoring software.
